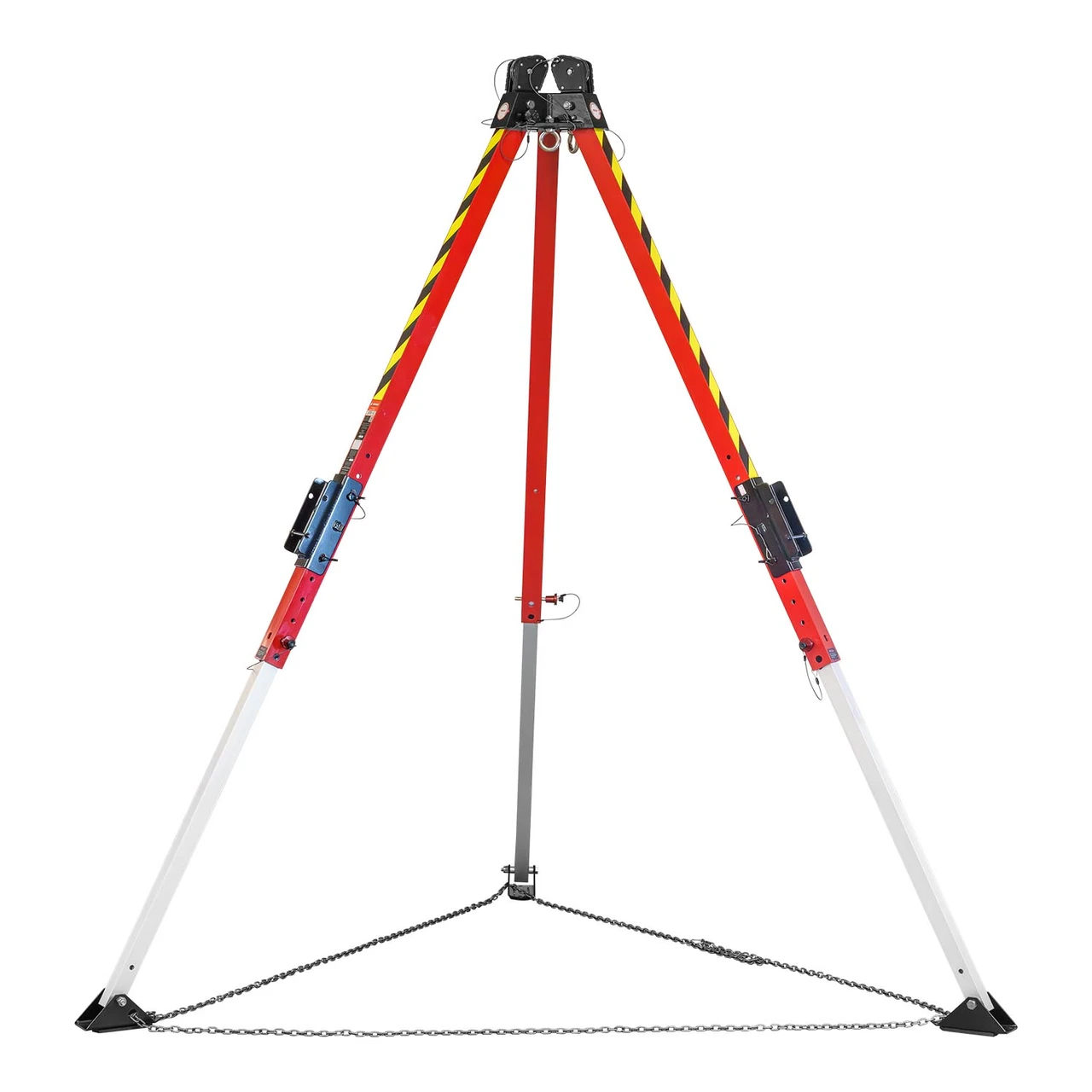

KStrong® Megapod™ 7' Basic Tripod & Winch Kit

Product Description

The KStrong Megapod 7' Basic Tripod & Winch Kit provides a durable and versatile solution for confined-space access, personnel handling, and retrieval applications. This basic kit combines the adjustable 7' Megapod Tripod with a 60 ft. Material / Personnel Winch, pre-installed mounting bracket receivers, and a tripod storage bag to create a convenient system for demanding industrial and confined-space environments. Constructed from lightweight, durable aluminum alloy, the Megapod™ features telescoping legs that adjust from 48.50" (1.23 m) to 89.29" (2.26 m) from ground level. Height adjustment is achieved by sliding the telescopic legs into the desired position and securing them with stainless steel locking pins attached by cables for added convenience and security. Two securely connected eyebolts provide attachment points for compatible personal protective equipment. The tripod also features a dual-pulley system designed to allow the wire rope of a winch mounted on one leg and a retrieval block mounted on the opposite leg to be routed simultaneously, providing additional flexibility when configuring a confined-space system. Combining an adjustable aluminum tripod with a 60 ft. material/personnel winch, the KStrong Megapod™ Basic Kit provides a dependable and convenient solution for confined-space access, lifting, and retrieval applications.

Features:

• Adjustable height from 48.50" (1.23 m) to 89.29" (2.26 m)
• Includes 60 ft. Material / Personnel Winch
• Sliding telescopic legs for convenient height adjustment
• Stainless steel locking pins secured with cables
• Two integrated eyebolts for connection to compatible PPE
• Dual-pulley system accommodates winch and retrieval equipment simultaneously
• Pre-installed lower mounting bracket receivers
• Lightweight and durable aluminum alloy construction
• Designed for confined-space access and personnel handling applications
• Storage bag included for easier transportation and storage

Specifications:

• Load Capacity: 310 lbs.
• Tripod Weight: 52.42 lbs. (23.78 kg) ± 0.22 lbs. (0.10 kg)
• Megapod Legs: Aluminum alloy with anodized / powder-coated finish
• Head: Aluminum alloy with black powder-coated finish
• Locking Pins: Stainless steel with electropolished finish
• Leg Finish: Powder coating / anodizing
• Relevant Standard: Meets or exceeds ANSI Z359.18-2017 Type A

Ideal For:

• Confined-space entry
• Manholes and utility access
• Personnel raising and lowering
• Material lifting and retrieval
• Wastewater and water treatment facilities
• Construction and industrial maintenance
• Utility and telecommunications work
• Industrial confined-space applications

Kit Includes:

• 7' Megapod Tripod – SKU#- UFT510007
• 60' Material / Personnel Winch – SKU# UFT530060
• Tripod Storage Bag – UFZ810010
• (2) Universal Lower Assembly Mounting Bracket Receivers – UFT510010B2, pre-installed on the tripod legs for winch mounting

Important: A 3-Way Rescue Retrieval SRL-R is not included with this Basic Kit. Use of a compatible 3-Way Rescue SRL-R requires an additional UFT510010B mounting bracket, sold separately.
