Diamondback® Hose Bridge Single Tunnel Package for 3" Lines

Product Description

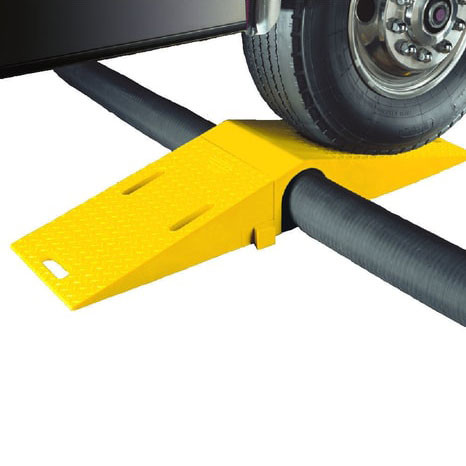

The Diamondback Single Tunnel Hose Bridge System is engineered to protect valuable hoses and cables while providing a safe, stable crossing for rubber-tired vehicles. Constructed from high-density, all-weather polyurethane, this heavy-duty bridge delivers excellent load-bearing capacity, enhanced traction, and long-term durability in demanding jobsite conditions.

Features:

• Heavy-duty polyurethane construction resists abrasion, impact, and harsh weather
• Diamond-plate tread surface increases traction for vehicles and foot traffic
• High-visibility yellow caution color enhances jobsite safety
• Protects hoses and cables up to 3" outside diameter
• Modular, interlocking design is lightweight and easy to transport, set up, disassemble, and store
• Built-in hand holds allow for easy handling and double as attachment points for mounting brackets
• Load Capacity: 11,850 lbs per tire (23,700 lbs total system capacity)
• Number of Channels: 1-Channel
• Length: 27"
• Width: 17.5"
• Height: 3.88"
• Bridge Length: 34.75"
• Bridge Width: 16"
• Bridge Height: 3.88"
• Tunnel Diameter: 3"
• Tunnel Top Length: 5.38"
• Tunnel Base Length: 13.25"
• Ramp Top Length: 14.75"
• Ramp Base Length: 10.75"
• System Weight: 32 lbs.
